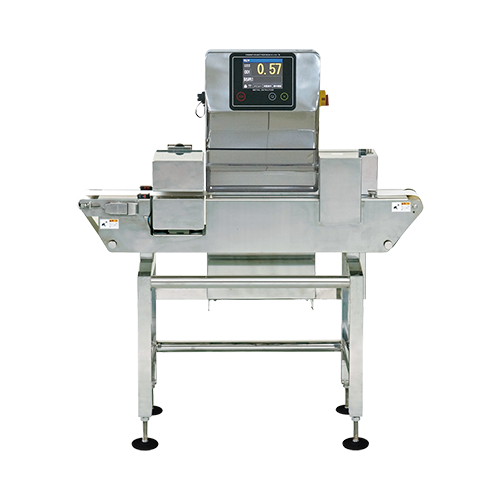

Alpas-F Series Mini Conveyor type
Alpas-F Series Mini Conveyor type
- Improved sensitivity
By improving the performance of the sensor unit and the control unit, the highest sensitivity has improved from Fe φ0.7 to φ0.4 (belt surface sensitivity) in comparison with our conventional machine - High sensitivity detection of magnetic foreign substances
Magnetic foreign substances in products such as aluminum packaged products and high-effect products can be detected with high sensitivity, which was difficult using conventional metal detectors - Operability
The high-definition color touch panel realizes easy-to-see and easy-to-use operability - Consideration of HACCP
The detachable belt provide excellent cleanability The conveyor frame, search coil and control unite are hygienic and made of stainless steel Mounting a tower type control unit, the machine has an open base structure, which makes it easy to clean the floor - Enhanced history log function
The history log capacity has been substantially increased to log up to 20,000 events. The display adapt an easy-toread Chinese character format
History data and setting values can be stored via USB flash drive
Optional external output and dedicated printer output are also available - Conveyor variable speed control
The conveyor is equipped with a variable speed control as a standard feature, and removal timing automatically is adjusted to the conveyor speed via setting for each substance - Languages
Four languages (Japanese, English, Chinese and Korean) are available for display as a standard feature
- Main inspection targets
- Aluminum foil packaged products, aluminum foil plate products, aluminum lid products, aluminum bottles, high-salt foods, frozen foods whose temperature significantly changes, etc.
Standard Specifications
| Type | Mini Conveyor type |
|---|---|
| Model | MS-5545-10SI-□□ |
| Control unit model | ND-440UT |
| Search coil model | F4AW-010□□ |
| Detection (passage) height | 20 mm (Variable range: 10 to 50 mm) |
| Detection sensitivity* | Feφ0.4 (Reference value, Stainless steel wire φ0.28×2mm) |
| Belt width | 100mm |
| Machine length | 1,000mm |
| Belt speed | 20 to 60 m/min |
| When metal is detected | Belt stop or automatic removal (Optional) |
| Power supply | Single phase 100 VAC, 2.0A, 150W, 50/60Hz |
| Weight | 85kg |
* Maximum detection sensitivity. Under our standard condition. The detection sensitivity differs according to
product and operating environment.
◦The coil height is indicated in □□. Example: 01=10mm, 03=30mm, 05=50mm
